New model with a Crystal dome and a White inside frame.

A classic roof vent with a 12V DC variable speed motor suitable for motorhomes, caravans and van conversions.

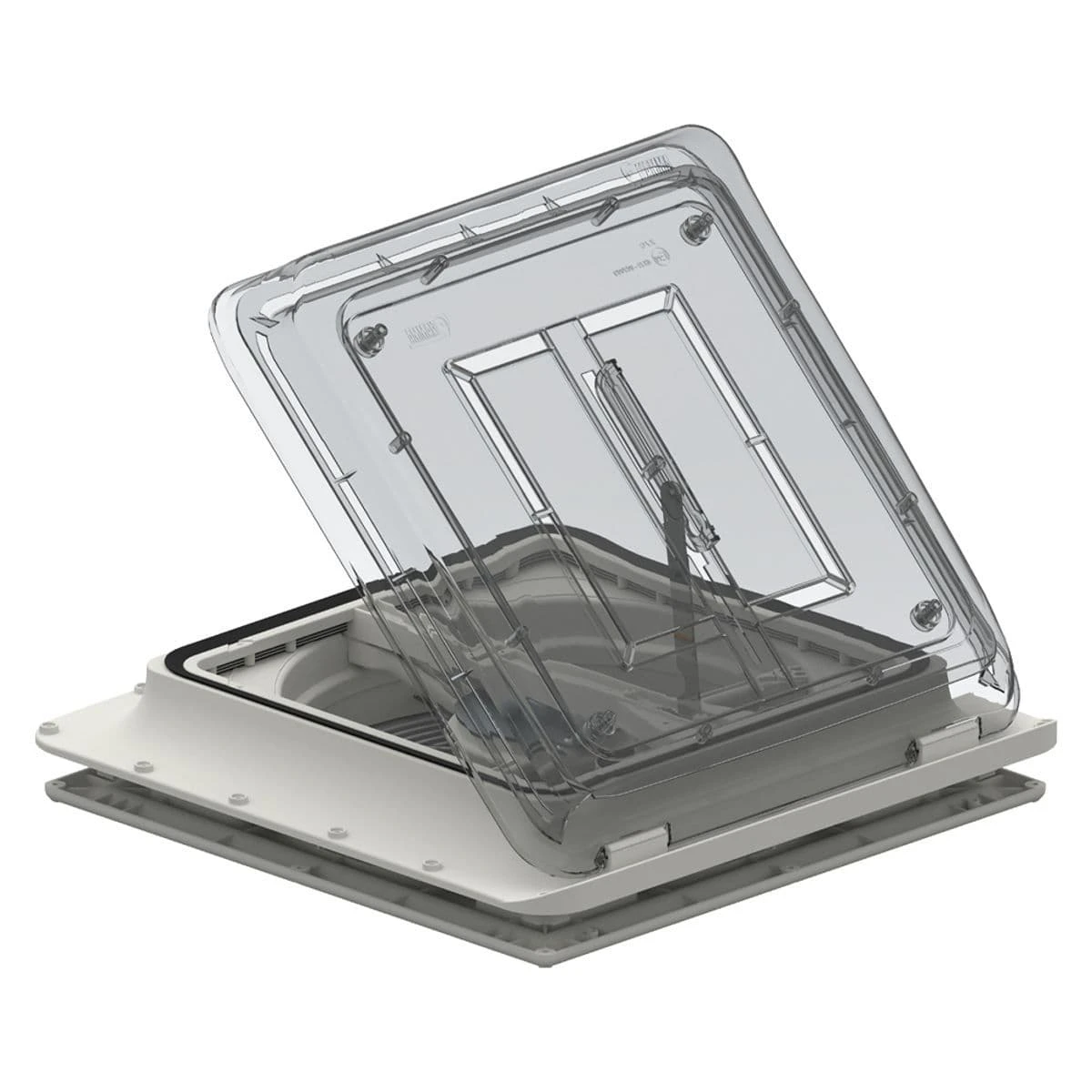

This 40 x 40cm Fiamma model is fitted with an aluminium mosquito net and has a transparent ‘crystal’ cover letting in as much light as possible.

The aerodynamic design means the vent does not need to be fitted with a spoiler and noise and vibrations are greatly reduced.

A patented rubber seal and high-quality UV resistant materials guarantee a watertight system whilst protecting the vent and vehicle against the elements.

This model is interchangeable with older 40 x 40cm Fiamma roof vent models and with vents from 36 x 36cm to 42 x 42cm, thanks to its reinforced frame.

– Cover: Transparent ‘crystal’

– Power consumption: 36W

– Minimum absorption: 0.3A

– Maximum input: 3A

– Maximum air flow: 35 m³/min

Key Features

• Variable fan speed
• Aerodynamic shape means that a spoiler is not required
• Fitted with aluminium mosquito net
• Allows constant air circulation
• ABE approved

Specifications

Brand	Fiamma
Type	Powered Roof Vent
Size	40cm x 40cm
Weight	4.6kg
Approvals	ABE 19330 E24 10R-030530
Application	Caravans, Motorhomes, Van Conversions
Country of Origin	Italy

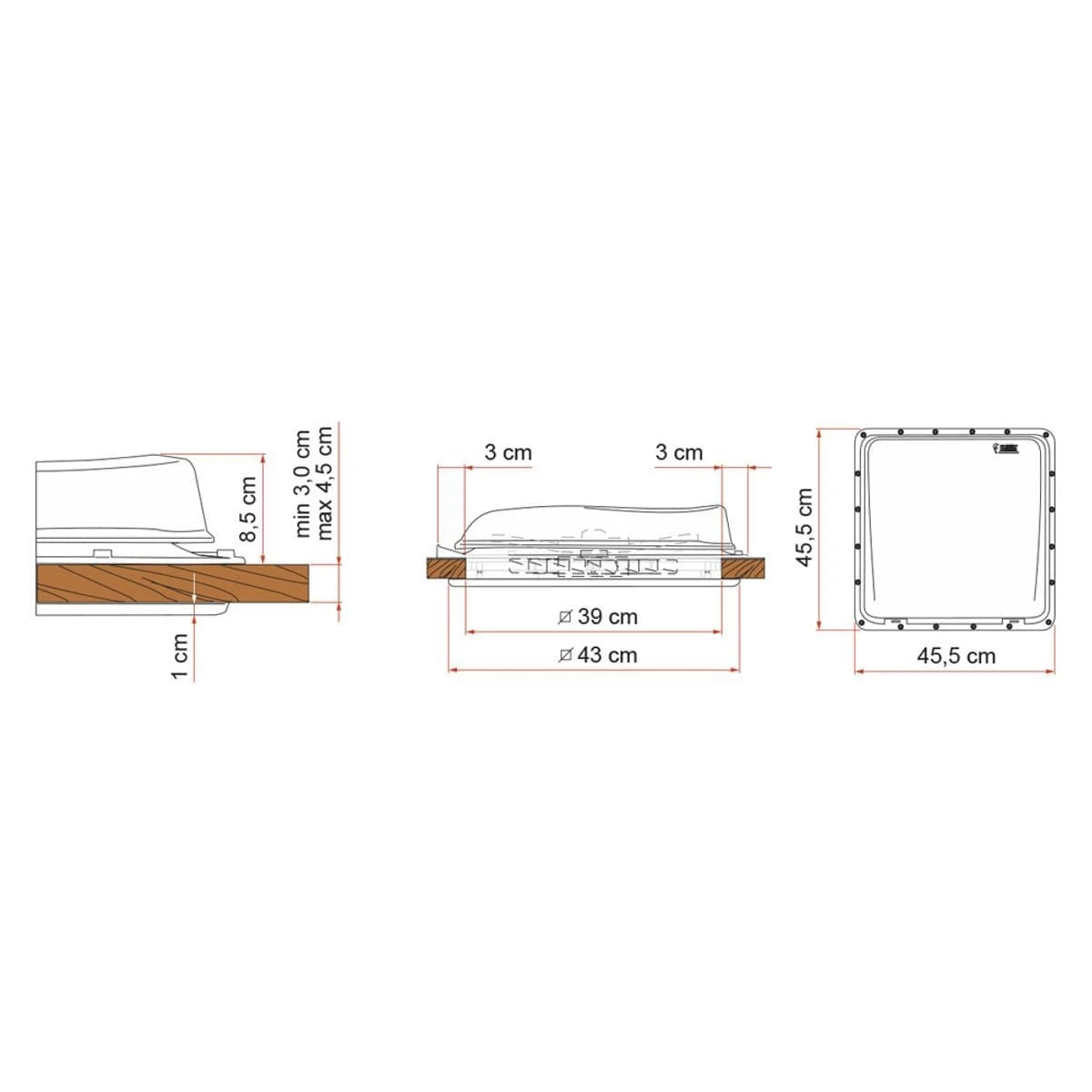

Can be installed on roofs with depths of 3cm to 5cm out of the box and up to 8.5cm using the optional extension handle kit 98683-112.
 Installation and usage instructions
